BOE 11.6Inch laptop lcd panel 1280*1752Pixels 187PPI PC LCD Module 45PIN 16.7M Original Brand new

Brand Name : BOE

Model Number : TV116FMM-LB0

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : $26

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1280*1752 ixels

style : LCD

brightness : 280 CCD M2

color : 16.7M

contrast ratio : 1400 :1

working life : 15K Hours

Touch panel : in-cell touch

screen size : 11.6inch

Contact Now

BOE 11.6Inch laptop lcd panel 1280*1752Pixels 187PPI PC LCD Module 45PIN 16.7M Original Brand new

BOE Technology Group Co., Ltd. (hereafter called BOE) TV116FMM-LB0 is a 11.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, touchscreen In-Cell Touch. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by einklcd in the following: Portrait type, With Touch, WLED Backlight . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q3, 2022, Now this model is discontinued. We inputted this model's specification on Mar 10 2025 for the first time. If you want to embed TV116FMM-LB0 Assembly in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The TV116FMM-LB0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: BOE
Model P/N: TV116FMM-LB0

Diagonal Size: 11.6"
Panel Type: a-Si TFT-LCD, Assembly

Resolution: 1280(RGB)×1752 187PPI
Pixel Format: RGB Vertical Stripe

Active Area: 173.453(W)×237.413(H) mm
Bezel Opening: -

Outline (mm): 190×258.339×5.1 (H×V×D)
Treatment: Hard coating (3H)

Luminance: 280 cd/m² (Typ.)
Contrast Ratio: 1400 : 1 (Typ.) (TM)

Viewing Angle: 80/80/80/80 (Min.)(CR≥10)
Response: 30 (Typ.)(Tr+Td) ms

Good View at: Symmetry
Work Mode: ADS, Normally Black, Transmissive

Color Depth: 16.7M 75% NTSC
Backlight: 7S6P WLED , 15K hours , No Driver

Mass: 245g (Max.)
Used for

Refresh Rate: 60Hz
Touchscreen: In-Cell Touch, I²C

Signal Type: MIPI (4 data lanes) , Connector 45 pins

Voltage Supply: 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE)

Max. Ratings: Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

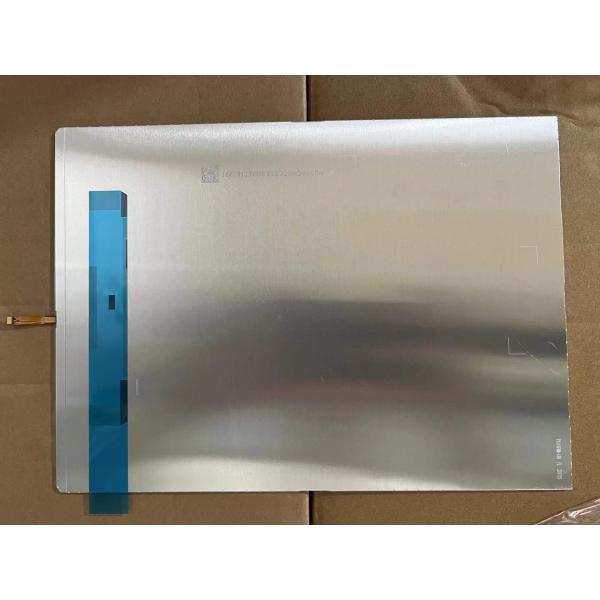

BOE 11.6Inch laptop lcd panel 1280*1752Pixels 187PPI PC LCD Module 45PIN 16.7M Original Brand new Images
