AUO 10.1 Inch Industrial LCD Panel WUXGA 1920x1200 Pixels 380 cd/m² Brightness TFT-LCD Display

Brand Name : AUO

Model Number : G101UAN01.0

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1920*1200pixels

style : 30PIN IPS

brightness : 380CD/M2

color : 16.7M

contrast ratio : 800 :1

working life : 30K Hours

Contact Now

AUO 30PIN 10.1 Inch Industrial LCD Panel WUXGA 224PPI 1920x1200pixels G101UAN01.0

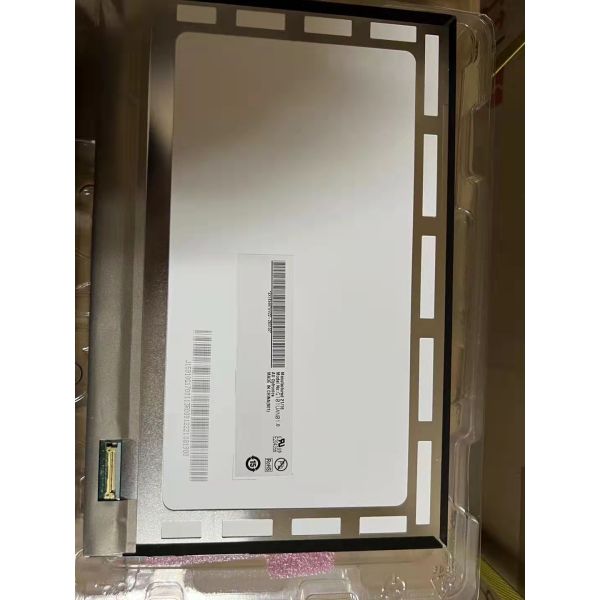

The G101UAN01.0 is a 10.1-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system with LED driver. This industrial-grade panel operates within a temperature range of -10°C to 60°C and offers WUXGA resolution with 224 PPI for exceptional image clarity.
AUO 10.1 Inch Industrial LCD Panel WUXGA 1920x1200 Pixels 380 cd/m² Brightness TFT-LCD Display AUO 10.1 Inch Industrial LCD Panel WUXGA 1920x1200 Pixels 380 cd/m² Brightness TFT-LCD Display
Key Features
  • 10.1-inch WUXGA display (1920×1200 pixels)
  • 224 PPI for high-density pixel display
  • 380 cd/m² typical brightness
  • 800:1 contrast ratio
  • WLED backlight with 30,000-hour lifespan
  • eDP 1.2 interface with 30-pin connector
  • Industrial operating temperature: -10°C to 60°C
  • AHVA technology with wide viewing angles
Technical Specifications
Panel BrandAUO
Panel ModelG101UAN01.0
Panel Size10.1"
Panel Typea-Si TFT-LCD, LCM
Resolution1920(RGB)×1200, WUXGA, 224PPI
Display Area216.81(W)×135.5(H) mm
Outline Size228.22(W)×147.3(H)×5.35(D) mm
Brightness380 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Response Time25ms (Typ.)
Display Colors16.7M, 52% NTSC
Signal InterfaceeDP (2 Lanes), eDP1.2, 30 pins Connector
Input Voltage3.3V (Typ.)
Operating Temperature-10°C to 60°C
Storage Temperature-20°C to 60°C
Panel Weight140g (Max.)
ApplicationIndustrial
Note: Production status and specifications are provided for reference only. For the latest production and specification details, please contact AUO or their authorized agents directly. All specification details are based on available datasheets and may be subject to change.
